SLEEK 86 Series
Narrow Frame Tilt & Turn Window
Features & Benefits
Ultra-Narrow Frame
Exceptional Strength
Precision Engineering
Unlimited Creativity
Luxurious Craftsmanship
Efficient Excellence

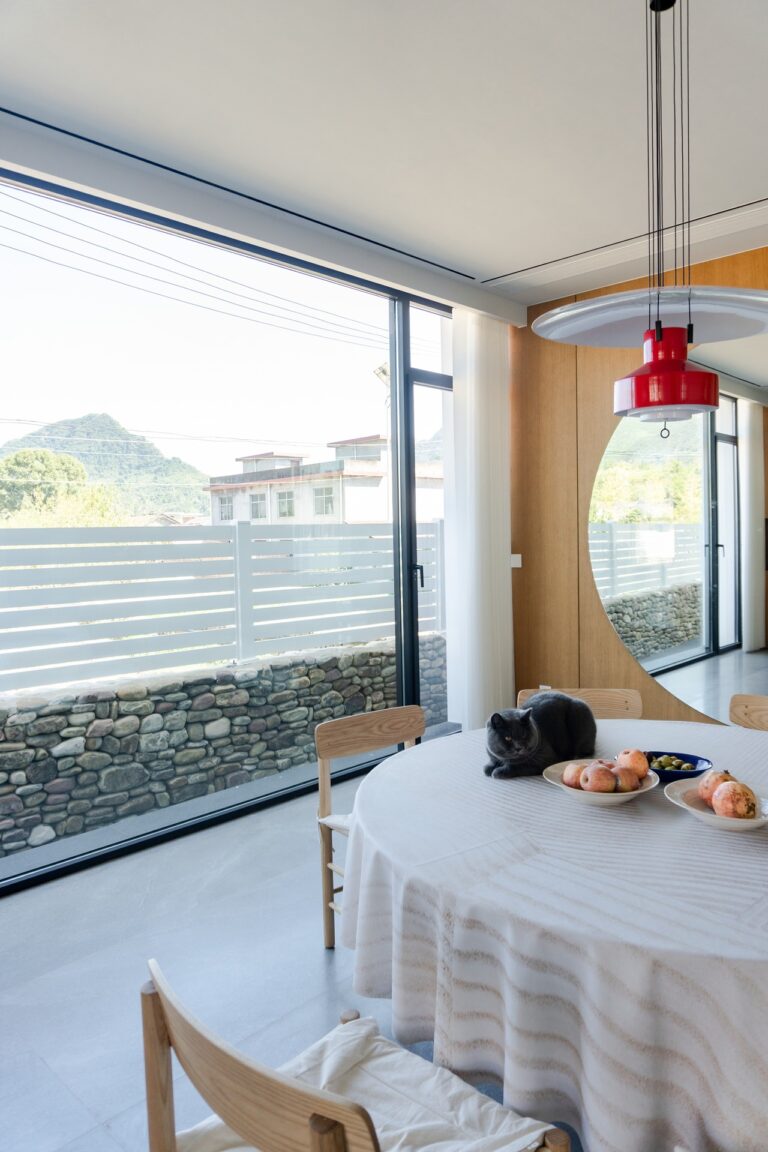

The SLEEK86 series narrow-frame inward opening tilt-turn windows feature a minimal visible frame overlap of just 60.4mm, delivering a sleek, minimalist visual experience. Compared to traditional inward opening tilt-turn windows, the SLEEK86 significantly enhances the viewing area, providing abundant natural light that brightens the interior space. Its design eliminates the base and incorporates a hidden side handle, complemented by original Sobinco concealed hardware imported from Belgium, redefining minimalist aesthetics for modern living.
It uses a special alloy die-cast corner bracket, with a sash bearing capacity of up to 90–180 kg, greatly improving structural strength and safety. The glass groove supports a maximum thickness of 42mm, allowing flexibility in choosing different types of glass. Additionally, the series supports optional professional ground-to-ceiling railing design, paired with clean lines to showcase a contemporary look and elevate household style.
Specifications
Performance Index | Value | Unit | Level |
---|---|---|---|
Thermal Insulation | 2.0 | W/(m²·K) | 6 |
Sound Insulation | 38 | dB | 4 |
Water Tightness | 750 | Pa | 6 |
Air Tightness | 0.5 | m³/(m²·h) | 8 |
Wind Pressure Resistance | 5.0 | kPa | 9 |
Global Professional Window Supply Chain





Installation & After-sales
2 Years Free Warranty
The doors and windows products enjoy a 2-year free warranty service starting from the date of successful installation and acceptance.
5 Years Waterproof Warranty
Professional sealing system design, offering a 5-year waterproof warranty guarantee.
Lifetime Maintenance
Offer lifetime maintenance services for doors and windows products, ensuring you have no worries during use.
